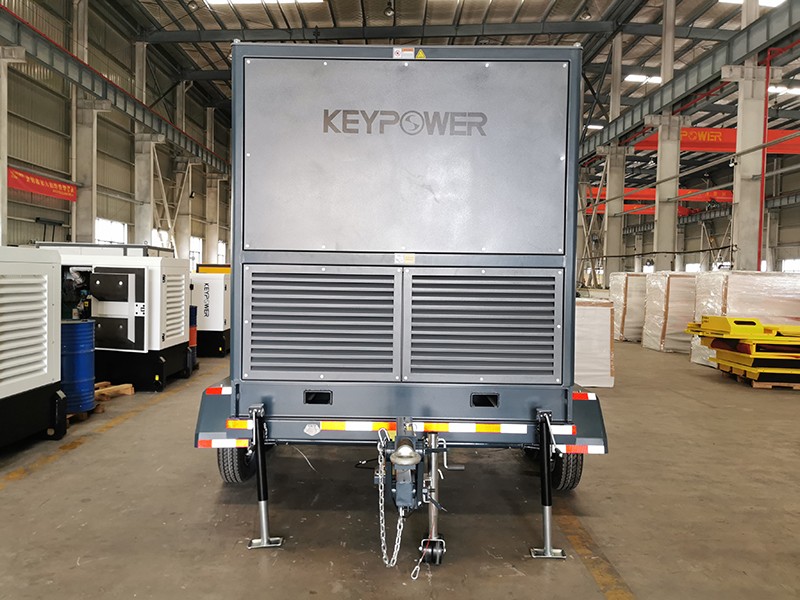

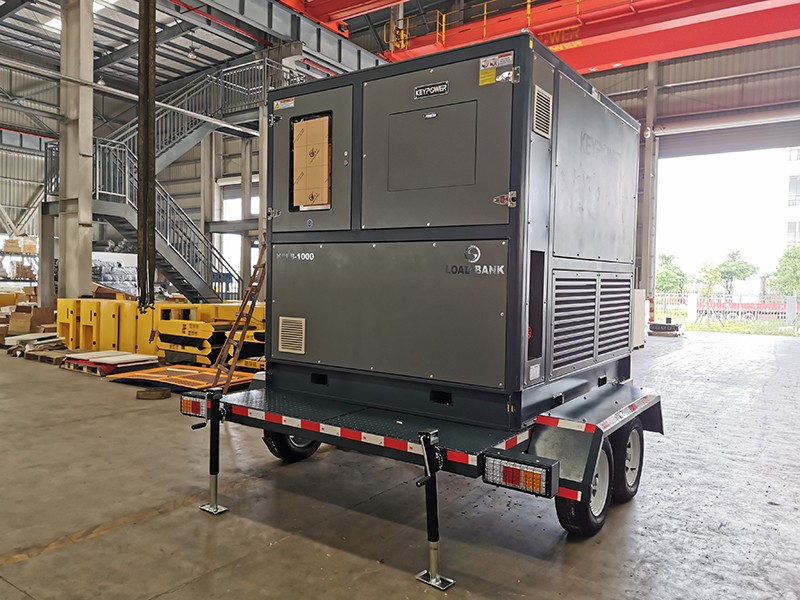

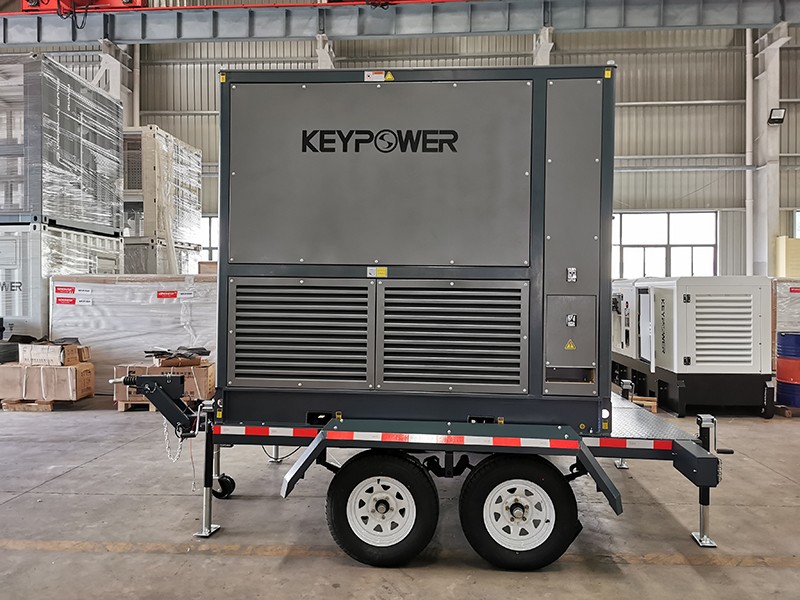

    KEYPOWER Resistive 1000kw load bank for Generator Testing Trailer rental
    none
    • Detail
    • Order


    KEYPOWER Resistive 1000kw load bank for Generator Testing  Trailer rental

    KEYPOWER Resistive 1000kw load bank for Generator Testing  Trailer rental

    KEYPOWER Resistive 1000kw load bank for Generator Testing  Trailer rental Product Details >>>>>>>>

    KEYPOWER GENERATOR TESTER SPECIFICATIONS
    MeasurementRangeAccuracyResolutionOverload
    Voltage (V)10.0~500.0V± (0.4% reading+0.1%range)0.1V600V
    Current (A)0.030~5.000A ± (0.4% reading+0.1%range)0.001A6A
    Power

    According to volt range

    &  current range

    Power factor =1.0<200W 0.1W
    ± (0.4% reading+0.1% range)≥200W 1W
    Power factor =0.5≥2kW 10W
    ± (0.8% reading+0.2% range)
    Power Factor0.20~1.00±0.020.001
    Frequency45~65Hz±0.2Hz0.01Hz
    Running Time99h59m±2min/hour1 minute
    Energy
     (kWh)
    99999kWh Power factor= 1.00.001kwh
    ± (0.4% reading+0.1% range)
    Power factor=0.5
    ± (0.8% reading+0.2% range)

    Harmonic Analysis

    (%)

    2-50 times

    and total harmonic






    Models You Can Choose
    Model

    Testing

    capacity

    Type

    of

     load

    Duty

    Cooling

    system

    Phase

    Rated

    Testing

    Voltage

    Rated

     Frequency

    Dimensions

       (L*W*H)

     (mm)

    Weight

     (kg)

    KPLB-1000 - 100 kw

    Resistive

    or

    Reactive,

     PF =

    1.0 or 0.8

    Continuous

    Industrial

    grade

    axial fan

    Available

     at both

    single

    and

    three

    phase

    110-480

    VAC

    50/60 Hz960*960*1400320
    KPLB-2000 - 200 kw1300*1200*1570500
    KPLB-3000 - 300 kw1600*1200*1700900
    KPLB-4000 - 400 kw1600*1400*17001000
    KPLB-5000 - 500 kw2100*1560*17001200
    KPLB-6000 - 600 kw2100*1560*17001300
    KPLB-7000 - 700 kw2100*1560*18001400
    KPLB-8000 - 800 kw2100*1660*19001600
    KPLB-10000 - 1000 kw2200*1900*21502000
    KPLB-20000 - 2000 kw20 ft container6000





    Specifications

    100-2000KW Load Bank for Generator Load Test:

    1.Premium components

    2.Durable and reliable

    3.Easy to transport
    Load bank is a simulating load test equipment used for generators,

    UPS, battery banks etc power systems load test.

    1. Resistive type of load, PF = 1.0. Stainless steel sheathed elements manufactured from high grade magnesium oxide.
    2Rated testing voltage: AC 3P4W, 110-480V 50/60 Hz.
    3. Cooling mode: Forced air-cooled, fans mounted on the side of the load bank blow horizontally. Testing power or external utility power supply for fans.
    4. Working mode: Load step control
    Total testing capacity ranges from 0kw to the max consisting of 10kw, 20kw, 50kw, 100kw load setting switches plus a 0-10kw fine-tuning knob. From 0kw to the max, any load combination is achievable. Load step resolution is 10kw.
