    100 kVA Power Genset Water-Cooled Diesel Generator Set With 6BT5.9-G2 Engine

    100 kVA Power Genset Water-Cooled Diesel Generator Set With 6BT5.9-G2 Engine

    100 kVA Power Genset Water-Cooled Diesel Generator Set With 6BT5.9-G2 Engine

    Diesel generator Specifications
    1. Powered by reliable engines
    2. Branded alternator
    3. Open type, silent type or super silent type generator
    4. ISO, CE certified

     100 kVA Power Genset Water-Cooled Diesel Generator Set With 6BT5.9-G2 Engine

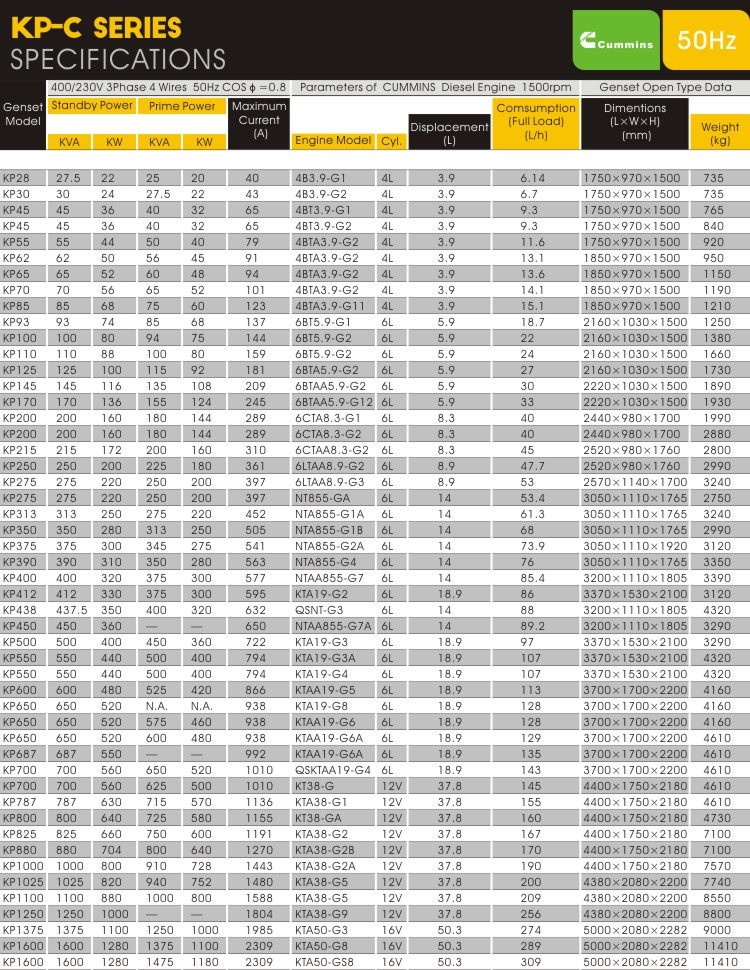

    Genset specs:
    Engine Brands: Powered by Cummins,Powered by Perkins,Powered by SDEC,Powered by Deutz,Powered by Doosan, Powered by Mitsubishi, Powered by Kubota, Powered by Yanmar or other
    reliable Chinese engines such as Fawde and Laidong.
    Rated output: 2 to 2,000kW/2 to 2,500kVA
    Rated voltage: L-N 110 to 277V, L-L 220 to 480V
    Rated frequency: 50/60Hz
    Cooling method: closed water-cooled or air-cooled
    Starting method: electric start or recoil start
    Rated speed: 1,500/1,800/3,000/3,600rpm
    Noise level: 56 to 75dB, 7 meters away



    100 kVA Power Genset Water-Cooled Diesel Generator Set With 6BT5.9-G2 Engine
    Alternator:
    Brands: By Stamford, By Leroy Somer, By Mecc Alte and Keypower brushless alternator
    Rated output: 8 to 2,000kW/10 to 2,500kVA
    Rated voltage: L-N 110 to 277V, L-L 220 to 480V
    Rated frequency: 50/60Hz
    Phase: 3-phase, 4-wire or 1-phase, 2-wire
    Connection: y or other type connection
    Rated speed: 1,500/1,800rpm
    Excitation: harmonic excitation or phase compound or brushless
    Voltage regulation: AVR automatic
    1.0% voltage regulation in static conditions (maximum)
    Protection class: IP23
    Control panel: Deepsea, ComAp, Keypower

    100 kVA Power Genset Water-Cooled Diesel Generator Set With 6BT5.9-G2 Engine

    100 kVA Power Genset Water-Cooled Diesel Generator Set With 6BT5.9-G2 Engine

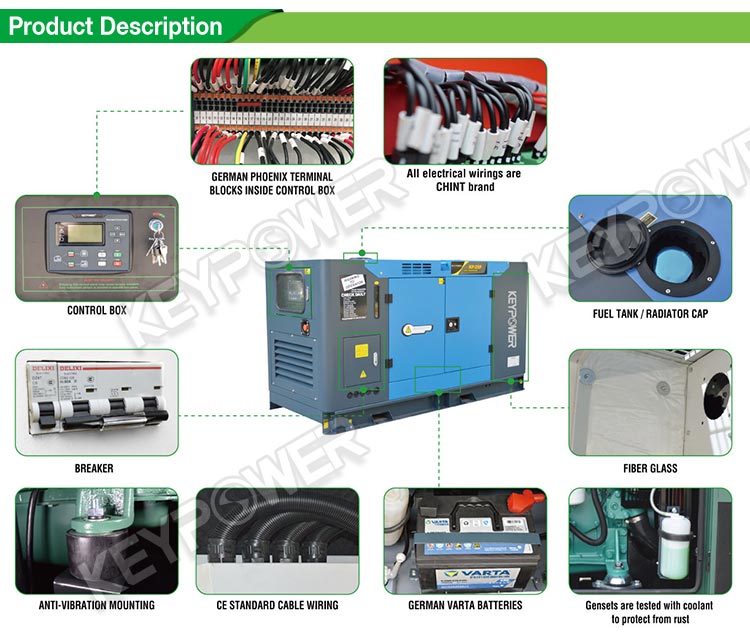

    THE PANEL IS PROVIDED WITH:
    Standard engine instrumentation
    Voltmeter with selector switch
    Ammeter with selector switch
    Frequency meter
    Current transformers
    MCB of suitable rating with overload and short-circuit protection
    Optional with AMF control panel or with ATS (automatic transfer switch)



    Packing:
    Wooden packaging, Carton packaging, PE film with hard paper corner protector

    100 kVA Power Genset Water-Cooled Diesel Generator Set With 6BT5.9-G2 Engine



    Applications:
    With advanced reasonable structure, high efficiency, low vibration and noise, smooth running, high reliability, easy handling, KEYPOWER generators are widely used in national defense, telecommunications, construction site, commercial buildings, industrial and mining sites, oil fields, roads, ports, villas, banks, hospitals etc.



    100 kVA Power Genset Water-Cooled Diesel Generator Set With 6BT5.9-G2 Engine

    100 kVA Power Genset Water-Cooled Diesel Generator Set With 6BT5.9-G2 Engine

    100 kVA Power Genset Water-Cooled Diesel Generator Set With 6BT5.9-G2 Engine

    100 kVA Power Genset Water-Cooled Diesel Generator Set With 6BT5.9-G2 Engine

    100 kVA Power Genset Water-Cooled Diesel Generator Set With 6BT5.9-G2 Engine

    100 kVA Power Genset Water-Cooled Diesel Generator Set With 6BT5.9-G2 Engine

     100 kVA Power Genset Water-Cooled Diesel Generator Set With 6BT5.9-G2 Engine

    FAQ For Your Reference

    1. Q: What is your MOQ of this item?

        A: 20FT contanier of mixed models



    2. Q: What is your payment terms?

        A: Price is based on FCL sale: T/T, L/C, D/P, O/A



    3. Q: What is the lead time?

        A: 25-45 workings days



    4. Q: Where is your port of loading?

      A: Fuzhou, China.



    5. Q: Can I use my own brand name?

      A: Yes, OEM and ODM are both supported.



    6. Q: Your annual production capactiy?



    Water-Cooled Genset

    3,000 units

    Air-Cooled Genset

    100,000 units

    Load Bank

    500 units



    7. Q: Available colors?

        A: White, Blue, Red, Green, Yellow, Gray



    8. Q: Which markets have you exported before?

        A: Southeast Asia, the Middle East, Africa, Europe, North and South America, Oceania.



    9. Q: Any certifications for your gensets?

        A: ISO9001-2008, ISO14001-2004, CE, SASO, SONCAP, RETIE, etc.



    10. Q: How is your packaging?

          A: Stretching film as standard, plywood crate is optional



    11. Q: The valid period of the offer?

          A: 30 DAYS
